Products Description

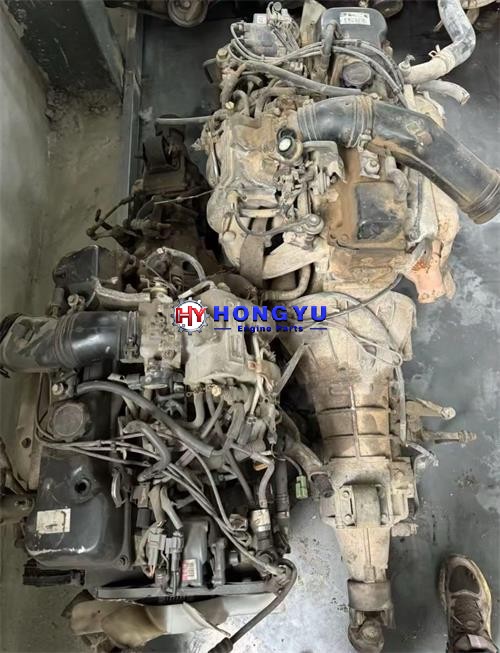

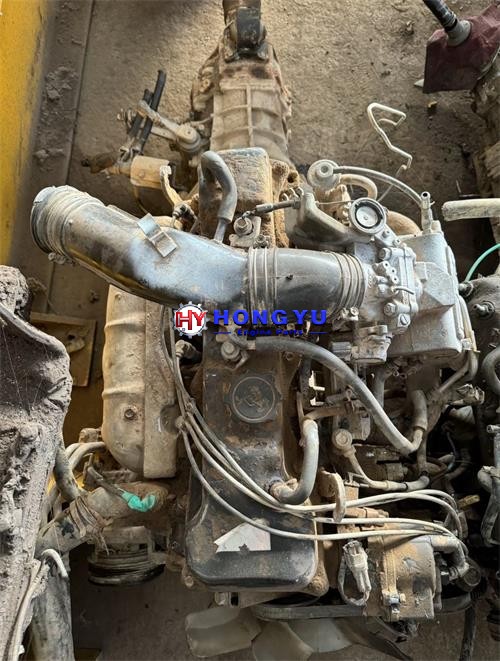

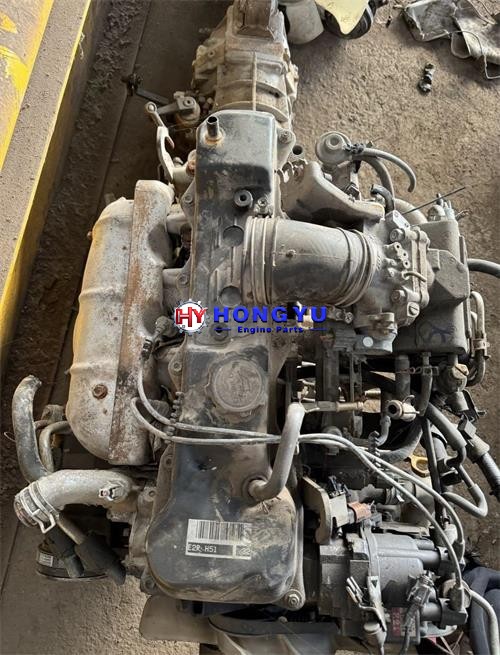

This batch of used original Toyota 2RZ-FE engines are dismantled from old-model Hilux pickups and Hiace light vans. Most vehicles ran steady highway cargo routes. We have excluded units subjected to heavy uphill loads, persistent overheating, water shortage and harsh off-road driving.
The engine retains original factory assembly. The cylinder block and cylinder head have never been overhauled or line-bored. No aftermarket spare parts are used for assembly or refurbishment, and paint is not used to cover housing and oil seal leaks.
This 2.4L inline 4-cylinder engine has a mechanical valvetrain with specific inherent weaknesses. It has no hydraulic lifters. Irregular valve clearance maintenance leads to valve wear and burn-out, persistent noise and rough idle.Aging timing chains and tensioners cause chain stretching and rattling noise on cold startup, with a risk of skipped timing and valve damage. The traditional distributor is prone to aging, water intrusion and wear, resulting in cylinder misfire and poor acceleration.The original head gasket tends to leak, and slow water pump leakage causes hidden overheating and compromised cylinder head sealing. Carbon-seized piston rings gradually lead to excessive oil consumption and high crankcase blow-by.
We carry out targeted inspections: cold and hot running tests to check timing chain and valve noise, distributor function testing, cooling system pressure testing for leaks, balanced four-cylinder compression testing, borescope inspection for cylinder wall scoring, plus crankcase blow-by and oil consumption checks.We eliminate all engines with faulty timing, excessive valve wear, coolant leakage, blown gaskets, oil burning and excessive blow-by. The OEM wiring plugs, mounting holes and flywheel housing match perfectly for direct bolt-on installation without modifying pipelines or brackets. Small retail orders and bulk orders are both accepted.
2. Technical Parameters
| Parameter Item | Specification |
|---|---|
| Engine Model | Toyota 2RZ-FE |
| Displacement | 2.4L Inline 4-Cylinder Gasoline Engine |
| Inspection Standard | Balanced four-cylinder compression, smooth cold startup, no timing or valve noise, no cylinder misfire, no cylinder wall scoring, leak-free cooling system, normal oil consumption, no oil seal leakage |
| Stock Status | Ready stock available, retail orders for repair shops and bulk wholesale orders are accepted |
3. Applicable Models & Equipment
Old Toyota Hilux pickup, Hiace light van
Old Prado and light off-road chassis vehicles
Replacement power assembly for light cargo vehicles and off-road refitting
4. FAQ
Q: What unique faults should be avoided when purchasing the 2RZ-FE engine?
A: This engine has no hydraulic lifters; incorrect valve clearance will cause burnt valves. Stretched timing chains create noise and risk valve damage. A faulty water-damaged distributor leads to cylinder misfire. Slow water pump and head gasket leakage cause hidden overheating and blown head gaskets. Carbon-locked piston rings also increase oil consumption.We inspect timing condition, valve health, cooling system sealing and cylinder wear to remove all defective units.
Q: How to confirm the engine has never been disassembled and overhauled?
A: Factory bolts on the cylinder head, oil pan and timing cover have original assembly marks, and permanent scratches will appear after disassembly.We can provide engine serial number photos, cold and hot test videos, compression data and in-cylinder borescope footage. Each engine has a unique ID with verifiable records.
Q: Do I need to modify wiring and mounting brackets during replacement?
A: Wiring plugs, mounting positions and flywheel housing are all OEM specifications. The engine can be fitted directly after removing the old unit with no modification or adjustment, and runs normally immediately after installation.
