Products Description

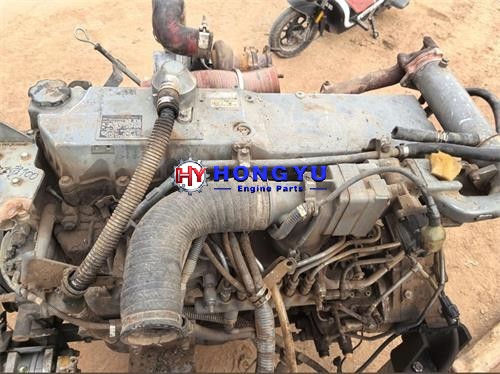

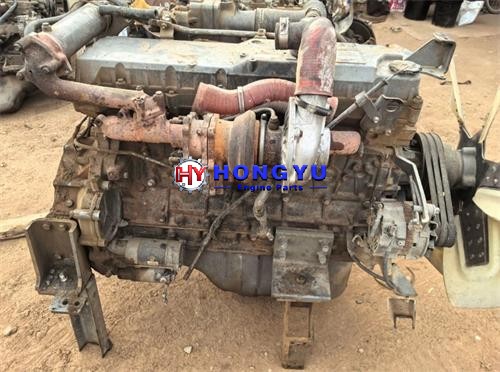

This batch of original dismantled Isuzu 6HK1 diesel engines are all removed from genuine Isuzu heavy-duty trucks and Hitachi large excavators. We prioritize units from long-distance rated-load logistics vehicles and intermittently operated construction machinery, and strictly eliminate engines that worked under harsh conditions such as long-term heavy-load climbing, continuous overheating and heavy construction site dust. The whole engine retains original factory assembly without cylinder head disassembly for overhaul, cylinder boring or sleeve replacement. Refurbishment with non-original spare parts and paint touch-up to cover oil or water leakage are completely prohibited, guaranteeing solid and durable core condition.
This 7.8L inline six-cylinder heavy-duty common rail engine has a huge market stock volume with typical inherent faults. The EGR cooler is prone to carbon clogging and internal leakage, which causes abnormal coolant loss, white smoke on cold start and oil-water mixing. The injectors are highly sensitive to diesel fuel quality; inferior fuel will cause needle valve sticking and poor atomization, resulting in rough idle, black smoke under heavy load and sharp power drop. Long-time idling accelerates oil seal aging and oil leakage of the turbocharger, leading to sharply increased oil consumption. Improper cooling system maintenance and overheating greatly raise the risk of blown head gaskets. Internal wear of the high-pressure common rail fuel pump causes difficult hot starting, and carbon stuck piston rings will lead to excessive crankcase blow-by.
We carry out full targeted inspections aiming at inherent defects of this model: cold and hot running tests to check startup performance and exhaust smoke status; water circuit pressure holding test to eliminate hidden leakage of EGR radiator and cylinder head gasket; balanced compression pressure test for all six cylinders; borescope inspection for cylinder wall scoring; turbocharger working condition and crankcase blow-by measurement, as well as fuel system pressure stability verification. All engines with blown head gasket, injector faults, turbo oil leakage, excessive blow-by and cylinder wall wear are rejected. OEM mounting holes, wiring plugs, oil pipe connectors and flywheel housing perfectly match original vehicles and equipment for direct bolt-on installation without modifying brackets or pipelines. Single-unit retail orders for repair shops and bulk container orders for foreign trade are both acceptable.
Technical Parameters
| Parameter Item | Specification |
|---|---|
| Engine Model | Isuzu 6HK1-TC |
| Displacement | 7.8L Inline 6-Cylinder Turbocharged Diesel Engine |
| Inspection Standard | Balanced compression of six cylinders, snappy cold startup, stable idle without vibration, no abnormal white/black exhaust smoke, no EGR system leakage, no cylinder wall scoring, no turbo oil leakage, low crankcase blow-by, normal oil consumption, leak-free oil and cooling circuits |
| Stock Status | Sufficient ready stock, available for single-piece delivery and full container bulk shipment |
Applicable Models & Equipment
Isuzu FVR, FVZ, GIGA heavy-duty trucks, dump trucks, cement mixers
Hitachi ZX330 / ZX350 / ZX360 large excavators
Large buses, mining engineering chassis vehicles, trailers, wreckers
High-power diesel generator sets, power replacement assemblies for industrial construction machinery
FAQ
Q: What unique faults need to be avoided when purchasing a 6HK1 engine?
A: The top common fault is internal leakage of the EGR cooler, which leads to water shortage, overheating and oil emulsification. Secondly, the common rail injectors are delicate and easy to be damaged by poor-quality fuel, directly resulting in insufficient power and black smoke. Shutting down the engine without idling for cooling will damage turbo oil seals and cause oil burning; heavy-load overheating tends to blow head gaskets, and worn high-pressure fuel pumps lead to hard hot starting. We thoroughly eliminate engines with hidden internal problems through water pressure testing, injector performance testing and in-cylinder borescope inspection.
Q: How to confirm whether the engine has been disassembled and overhauled?
A: Original factory bolts on the cylinder head, oil pan, gear chamber and valve cover keep factory tightening marks, which will leave irreversible scratches or thread damage once disassembled. We can provide photos of engine serial number, cold & hot idle running videos, six-cylinder compression test data and in-cylinder borescope footage for each unit, with complete and verifiable files for every single engine.
Q: Is wiring or mounting bracket modification required during replacement?
A: Wiring plugs, mounting positions, oil pipe joints and flywheel dimensions are all OEM standard. The new engine can be directly fitted after removing the old one without any modification or adjustment, and can be put into heavy-duty operation right after installation.
